Orifice

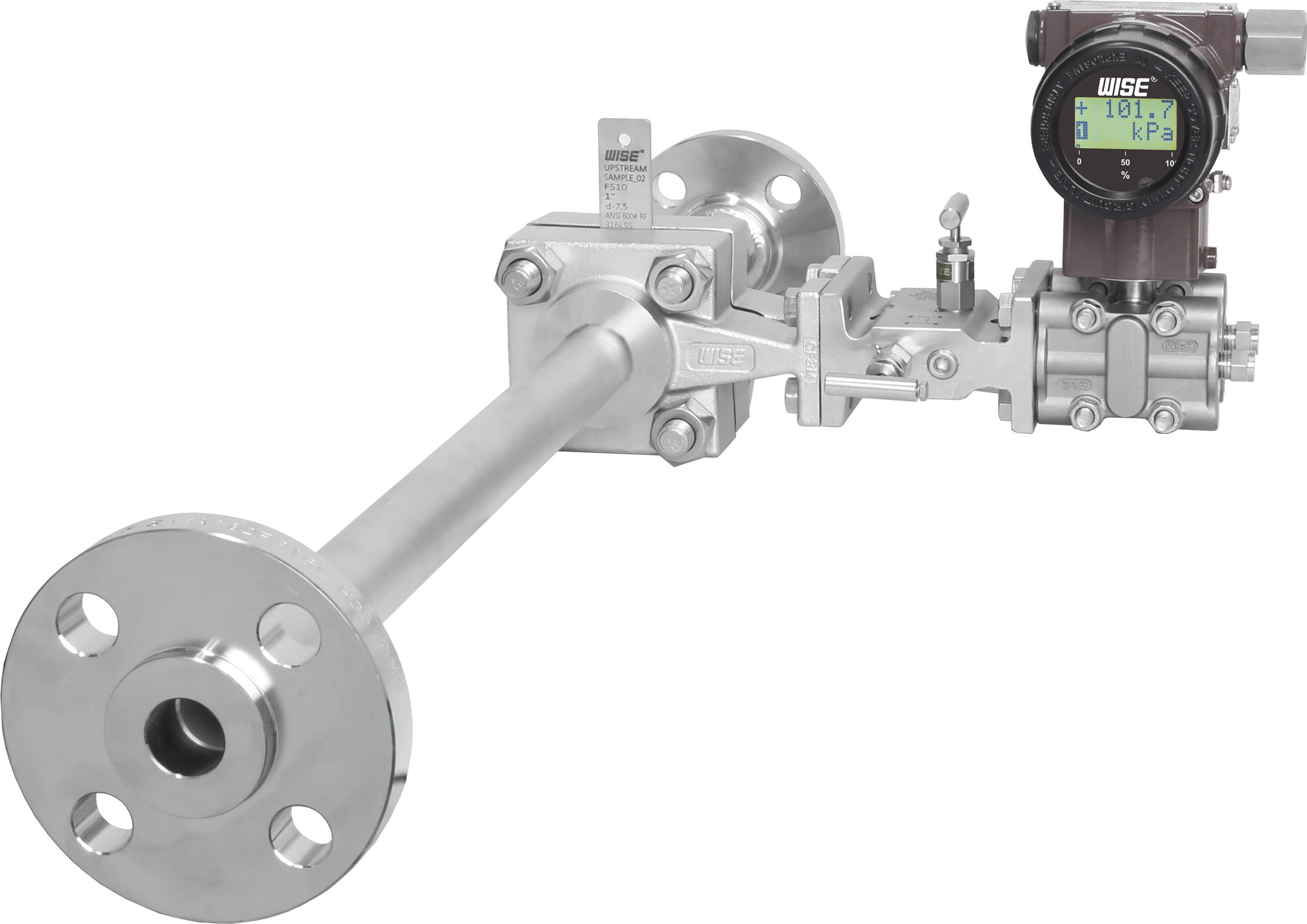

F510_Integral flow orifice assembly

F510

Description

Integral orifice primary element utilizes a self centering orifice plate design to eliminate installation error. Enables highly accurate flow measurement in small line sizes. Available with a variety of process connections. Available in ½" to 1½" (15 ~ 40 mm) line sizes.

Principle ● Improves accuracy and repeatability
● Self-centering plate design eliminates installation errors that are magnified in small line sizes
● Installation flexibility with numerous process connections

Specification

Line size ½"(15) ~ 1½"(40)
● Maximum working pressure :
   Pressure retention per ANSI B16.5 1500Lb
Orifice plate 316SS / 316L SS and Other
Body CF8, CF8M, CF3M, Material per ASTM A351
Pipe material (If applicable) A312 Gr 316SS / 316L SS and Other
Flange A182 F304 and Other
● Flange pressure limits are per ANSI B16.5
   Flange face finish per ANSI B16.5, 125 to 250 AARH
Body bolts / Studs ASTM A 193 Gr B8 studs and Other
Gaskets Glass filled PTFE or Graphite
Orifice type Square edge-orifice bore sizes
Transmitter connections 2⅛" (54 mm) center to center.
Other transmitter spacing can be accommodated using the optional remote adapters and customer supplied impulse piping.
DIN 19213 connections are available.
Note Integral orifice bodies contain corner tapped pressure
ports.
