: Special Type

Service intended

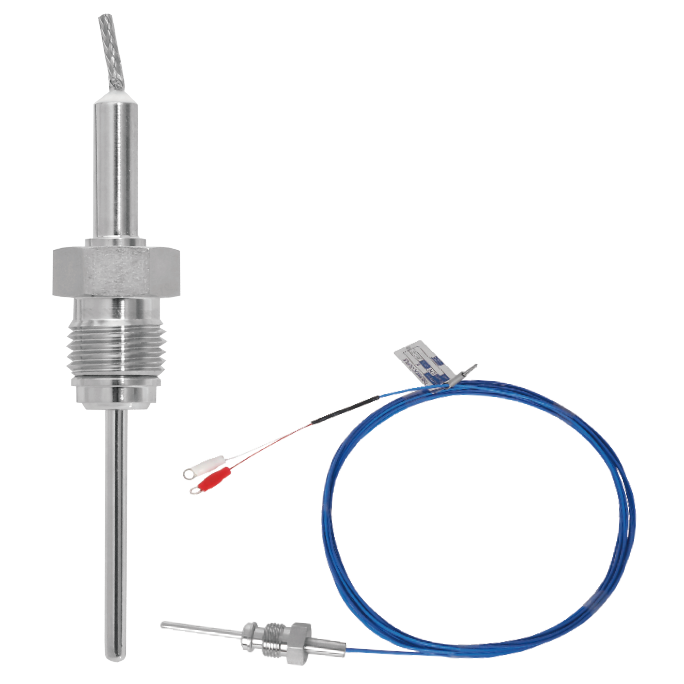

Ultra high purity temperature sensor have been developed based on the requirement of temperature measurement in semi-conductor and green energy system such as solar thermal systems to be used in collectors and accumulators.
It has excellent features to emphasis including sealing, temperature and long-term stability, high purity which are basic prerequisites to ensure reliable system operation even after many years. A design specifically adapted to the market requirements allows a cost-effective production.

Specification

Element	Thermocouple : K, E, J, T, N, R, S, B RTD : Pt 100 Ω at 0 ºC
Tolerances on temperature reading	■ Thermocouple Class 1, Class 2 (DIN/IEC584-2, BS/EN60584-2, JIS C1602) Special, Standard (ASTM E230, E988, ISA-MC96.1) ■ R.T.D Class A : ± (0.15 + 0.002 I t I) Class B : ± (0.3 + 0.005 I t I)
Sheath outer diameter	■ Thermocouple 1.0, 1.6, 2.3, 3.2, 4.8, 6.4, 8.0, 9.5 and 12.7 mm * Double element is not available for 1.0 and 1.6 mm sheath outer diameter. ■ R.T.D 3.2, 4.8, 6.4 and 8.0 mm
Sensing element structure	Protection tube or sheathed
Protecting tube outer diameter	6.4, 8.0, 10.0, 12.0 and 15.0 mm

Download

타이틀

UTE100_Ultra high purity temperature element

UTE100
