Bourdon Tube

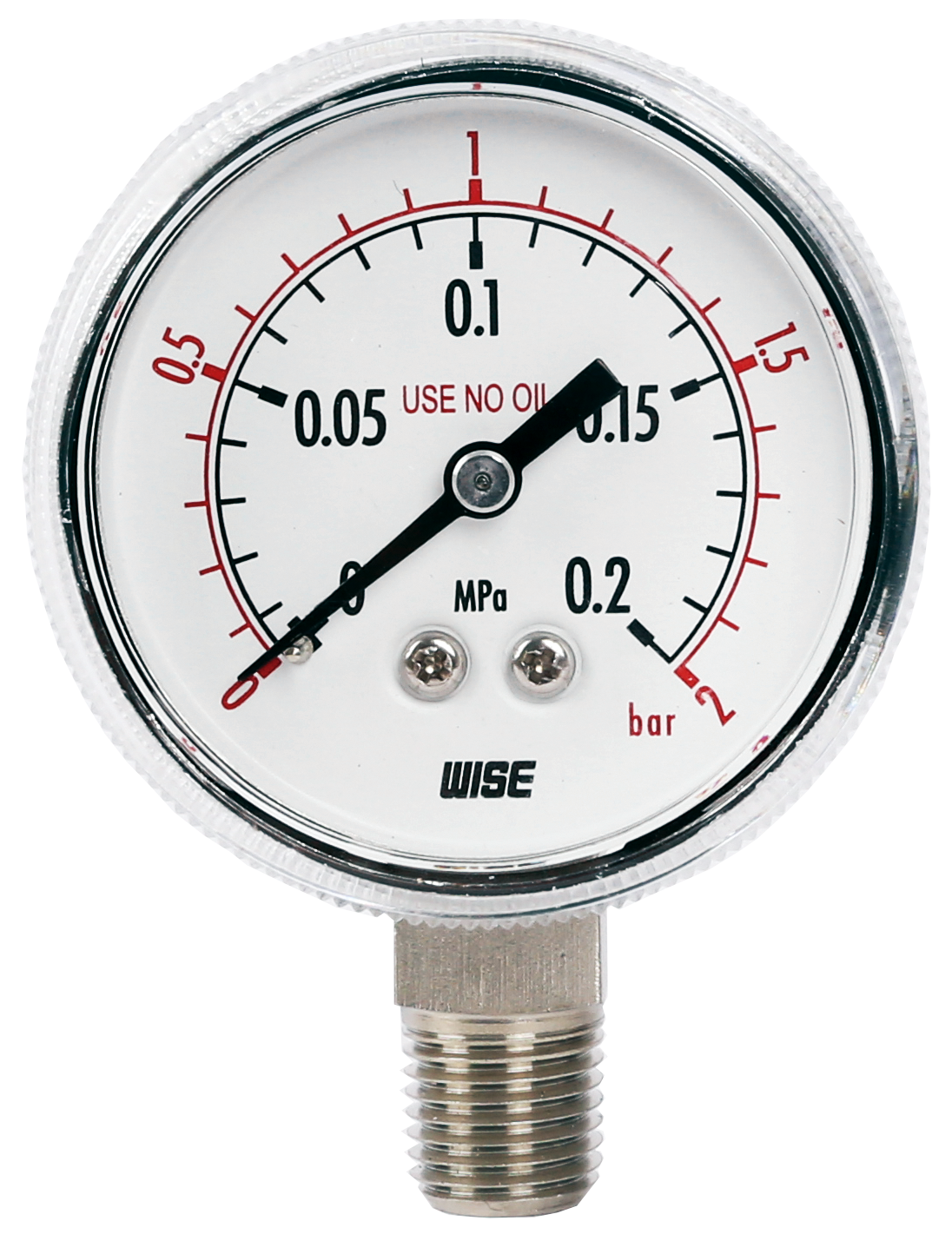

P113 Series_Air regulator service pressure gauge fully stainless steel wetted parts

P113 Series

Service intended

P113 series are specifically designed for CDA (Clean dry air) application regulators used in electronic, medical, biotechnology and pharmaceutical industry

Nominal diameter 50 mm (2")
Accuracy ±1.6 % of full scale
Scale range (MPa, bar) 0 ~ 40 MPa
Working pressure Steady : 75 % of full scale
Over range protection : 130 % of full scale
Working temperature Ambient : -40 ~ 65 ℃
Fluid : Max. 200 ℃
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection 316SS
Element 316SS
<6 MPa : C-type bourdon tube
≥6 MPa : Helical type bourdon tube
Case 304SS
Movement Brass
Dial White aluminium with pointer stop pin
With black/red lettering, dual pressure scale (bar/psi and MPa/bar)
Ring and window Twist-lock polycarbonate
Pointer Black painted aluminium alloy
Process connection ¼" NPT

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
