Bourdon Tube

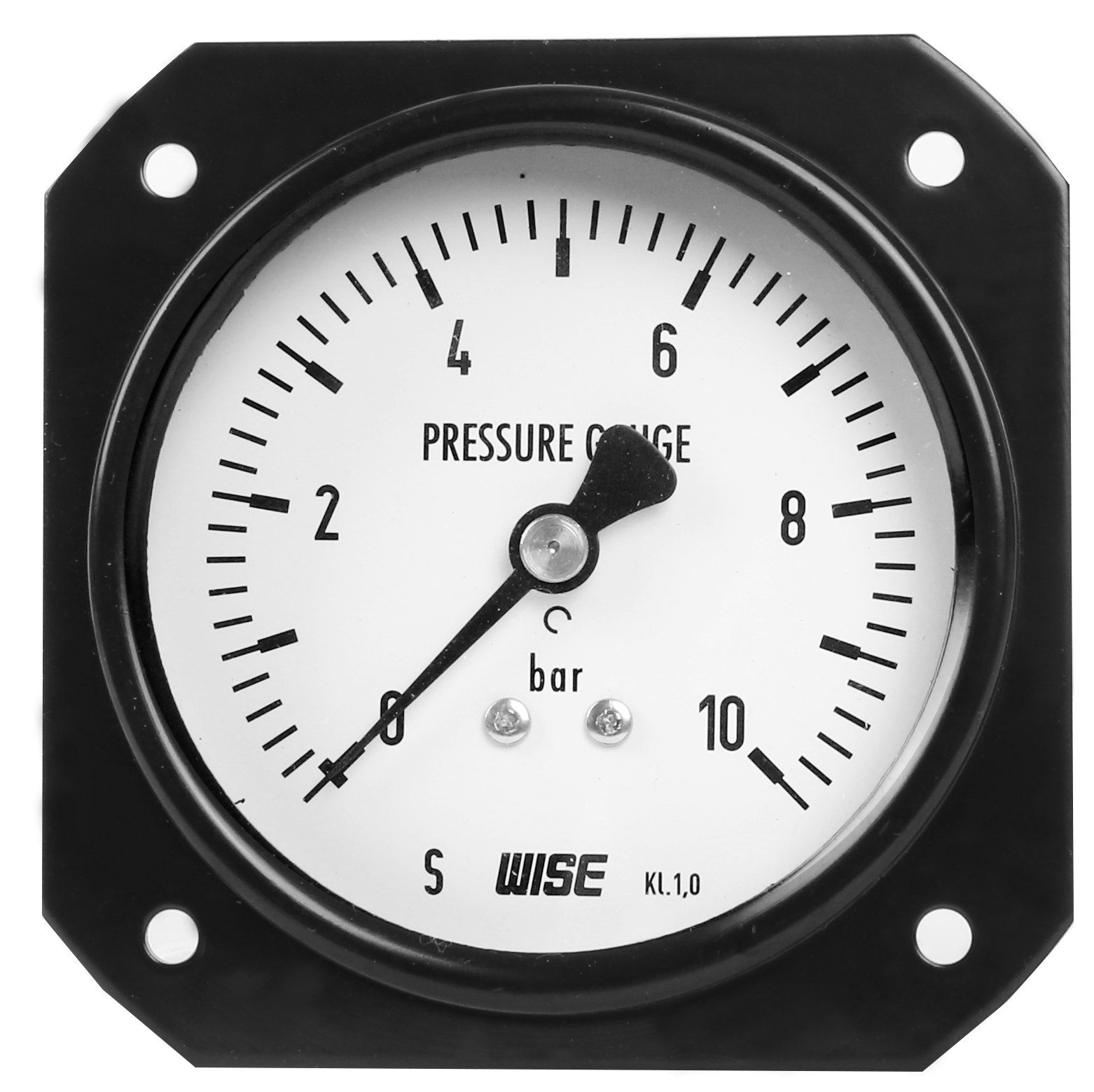

P163 Series_Heavy duty service pressure gauge

P163 Series

Service intended

P163 series are designed to withstand the shock, the vibration, and the pulsation which could be generated from heavy duty services.

Nominal diameter 80 mm
Accuracy ±1.0 % of full scale
Scale range (MPa, kPa, bar) -0.1 ~ 0 to 0 ~ 6 MPa
Working temperature Ambient : -20 ~ 60 ℃
Fluid : Max. 60 °C
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale

Standard features

Pressure connection Brass
Element Brass
Case Bronze
Cover Black finished bronze
Window Laminated safety glass
Movement 304SS
Dampers vibration and pulsation
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Process connection ⅛" PT, NPT and PF
¼" PT, NPT and PF
⅜" PT, NPT and PF
M12 x 1.5
