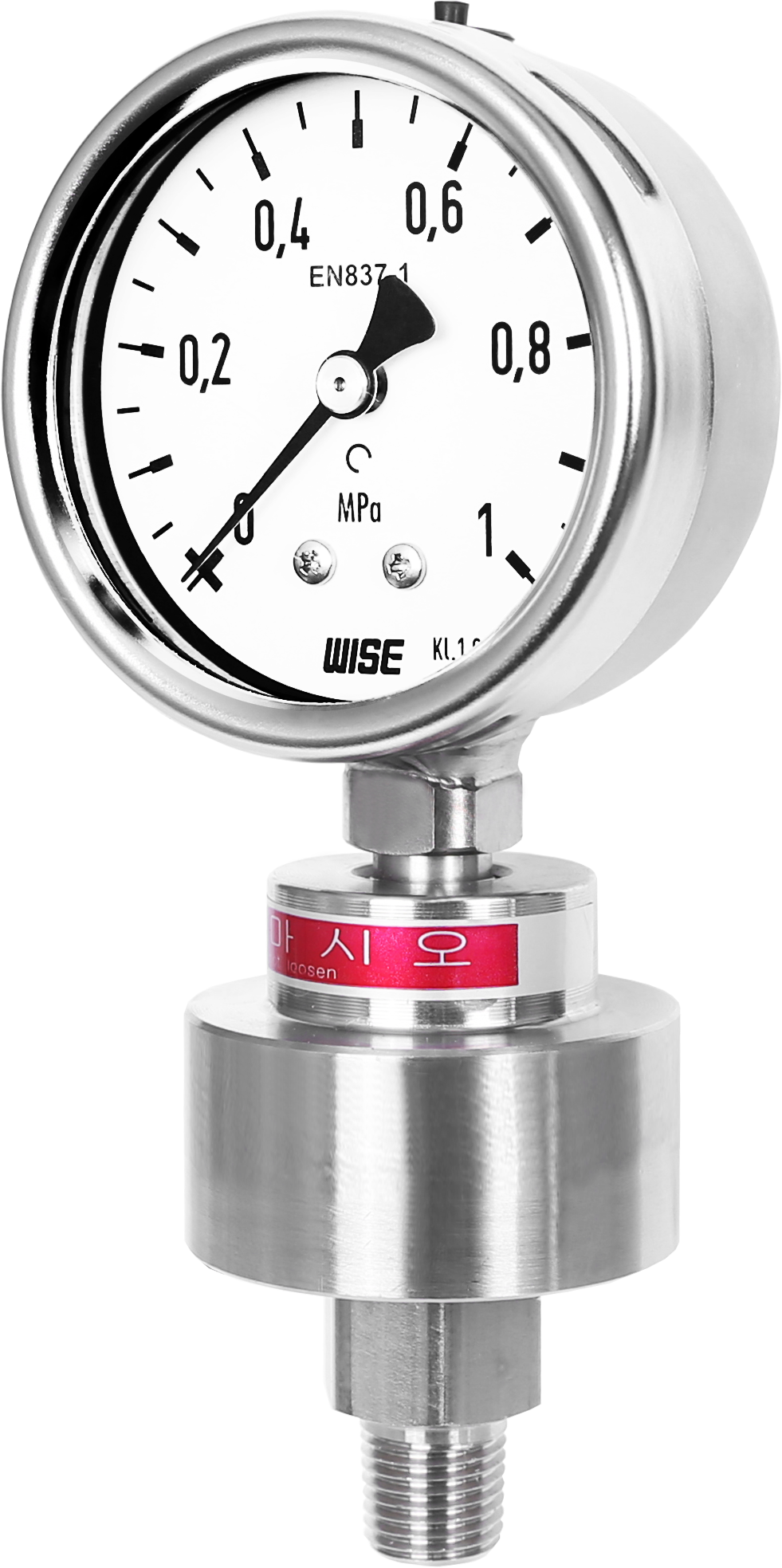

P701 Series_Compact design diaphragm seal pressure gauge

P701 Series

Service intended

P701 series are designed for diaphragm seal to be combined with a pressure gauge. It is suitable for corrosive, contaminated, hot or viscous pressure media in chemical and food process.

Design Internal diaphragm, upper and under flange welded no sealing and compact design
Accuracy P2522 (63 mm) and P2523 (80 mm) : ±1.6% of full scale
P2524 (100 mm) : ±1.0% of full scale
Scale range (MPa, kPa, bar) -0.1 ~ 0 to -0.1 ~ 2.4 MPa
0 ~ 0.1 to 0 ~ 7 MPa
Filling liquid Silicone oil
Working pressure Steady : 75 % of full scale (63 and 80 mm)
             100 % of full scale (100 mm)
Over range protection : 130 % of full scale
Working temperature Ambient : -20 ~ 65 °C
Fluid : Max. 100 °C
Degree of protection EN60529/IEC529/IP65
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.5 % per 10 ℃ of full scale

Standard features

Pressure connection (Gauge side) Stainless steel (316SS)
Diaphragm 316L SS, Hastelloy-C, Tantalum, Monel
Diaphragm outer diameter 40 or 48 mm
Under flange (Process side) 316SS, 316L SS, Monel, Hastelloy-C
Process connection ¼", ⅜", ½" PT, NPT and PF
¼" PT and NPT (F)
