: Bimetal

Service intended

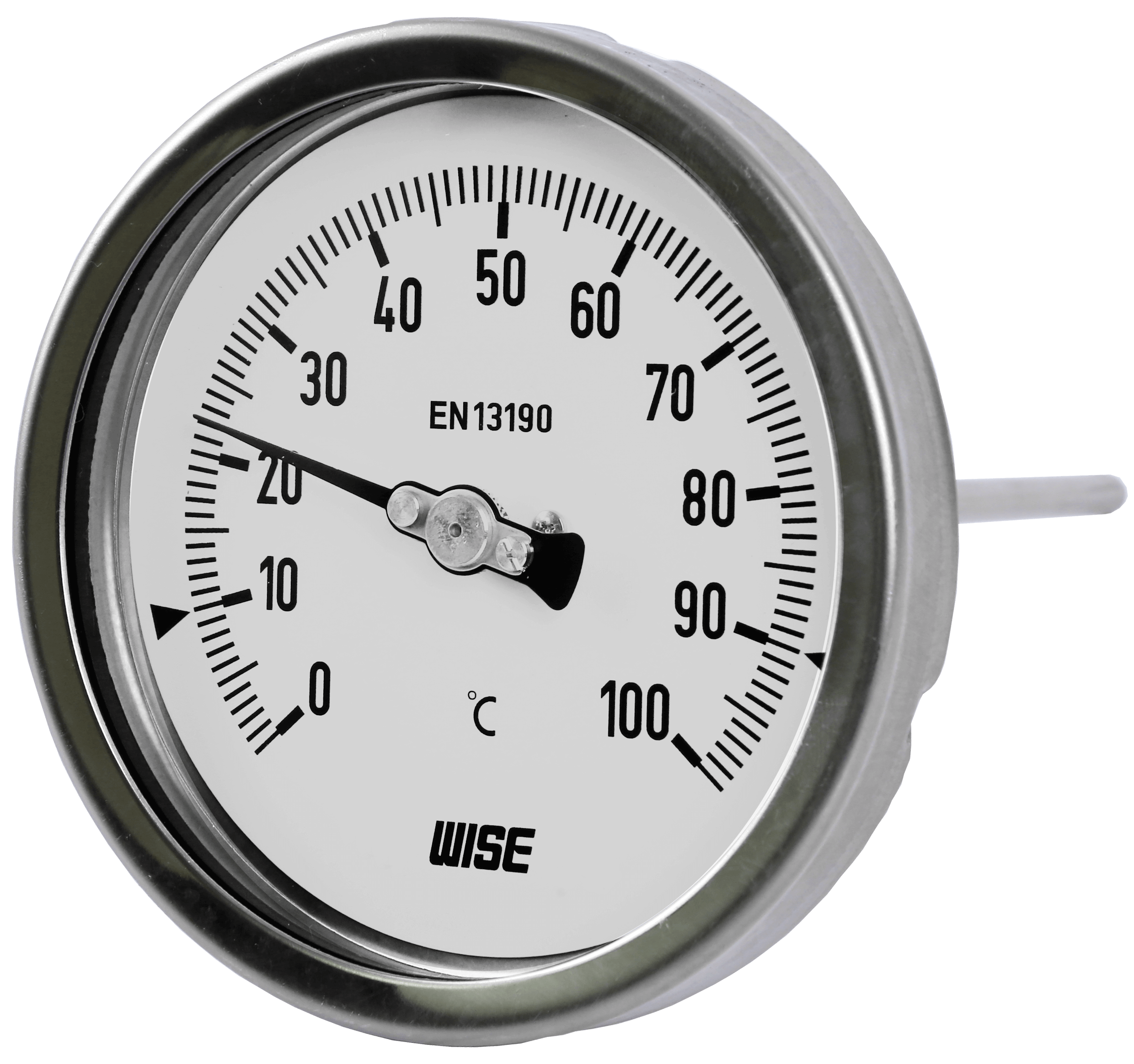

Bimetal thermometer is used for measuring temperature of gas or fluid. It is suitable for measurement, regulation, and direct monitoring for the fluid. It meets the most stringent criteria on resistance to a corrosive atmosphere and exceptional climatic circumstances.

Nominal diameter	50, 65, 75, 100, 125 and 150 mm
Accuracy	±2.0 % of full scale
Temperature element	Coiled bimetal
Working range	Maximum scale value

Standard features

Location of stem	Center back connection, direct
Case	304SS
Cover	304SS
Window	Glass
Dial	Metallic Silver aluminium with black graduations
Pointer	Black painted aluminium alloy
Stem	6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS Max. Insertion length : 2,000 mm
Zero adjustment	Internal
Stem, process connection	¼", ⅜", ½", ¾" PT, NPT and PF
Option	±1.0 % of full scale Not available with diameter 50 and 65 mm
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb / ATEX II 2D Ex h IIIC T85ºC…T450ºC Db
