Bimetal

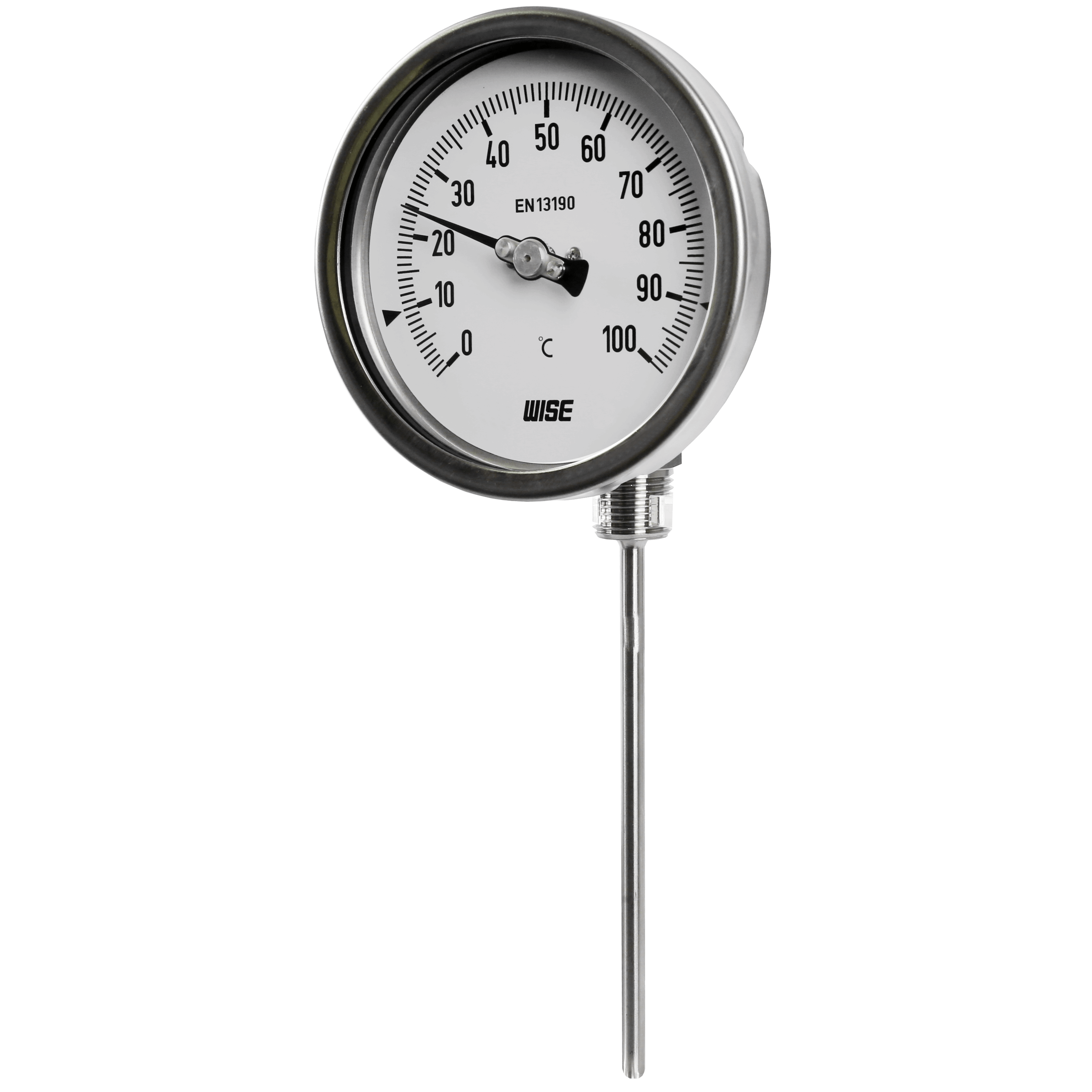

T140_Process industry bimetal thermometer

T140

Service intended

Bimetal thermometer is used for measuring temperature of gas or fluid. It is suitable for measurement, regulation and direct monitoring for the fluid. It meets the most stringent criteria on resistance to a corrosive atmosphere and exceptional climatic circumstances.

Nominal diameter 75, 100, 125 and 150 mm
Accuracy ±2.0 % of full scale
Temperature element Coiled bimetal
Working range Maximum scale value

Standard features

Location of stem Center back with angle stem
Case 304SS
Cover 304SS
Window Glass
Dial Metallic Silver aluminium with black graduations
Pointer Black painted aluminium alloy
Stem 6.0, 6.4, 8.0 and 10.0 mm diameter
304SS, 316SS and 316L SS
Max. Insertion length : 2,000 mm
Zero adjustment External
Stem, process connection ¼", ⅜", ½", ¾" PT, NPT and PF
Option ±1.0 % of full scale
Certificates ATEX II 2G Ex h IIC T6…T1 Gb /
ATEX II 2D Ex h IIIC T85ºC…T450ºC Db
