: Bimetal

Service intended

Bimetal thermometer is used for measuring temperature of gas or fluid. It is suitable for measurement, regulation and direct monitoring for the fluid. It meets the most stringent criteria on resistance to a corrosive atmosphere and exceptional climatic circumstances.

Nominal diameter	75, 100, 125 and 150 mm
Accuracy	±2.0 % of full scale
Temperature element	Coiled bimetal
Working range	Maximum scale value
Degree of protection	EN60529/IEC529/IP67 (100 mm) EN60529/IEC529/IP66 (+A6230)

Standard features

Location of stem	Center back with adjustable stem
Case	304SS, Adjustable on stem 90°
Cover	304SS
Window	Glass
Dial	Metallic Silver aluminium with black graduations
Pointer	Black painted aluminium alloy
Stem	6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS Max. Insertion length : 2,000 mm
Zero adjustment	External
Stem, process connection	¼", ⅜", ½", ¾" PT, NPT and PF
Option	±1.0 % of full scale Window : Safety glass Special range : 0 ~ 600 ℃
Certificates	ATEX II 2G Ex h IIC T6…T1 Gb / ATEX II 2D Ex h IIIC T85ºC…T450ºC Db

Download

Certifacates

타이틀

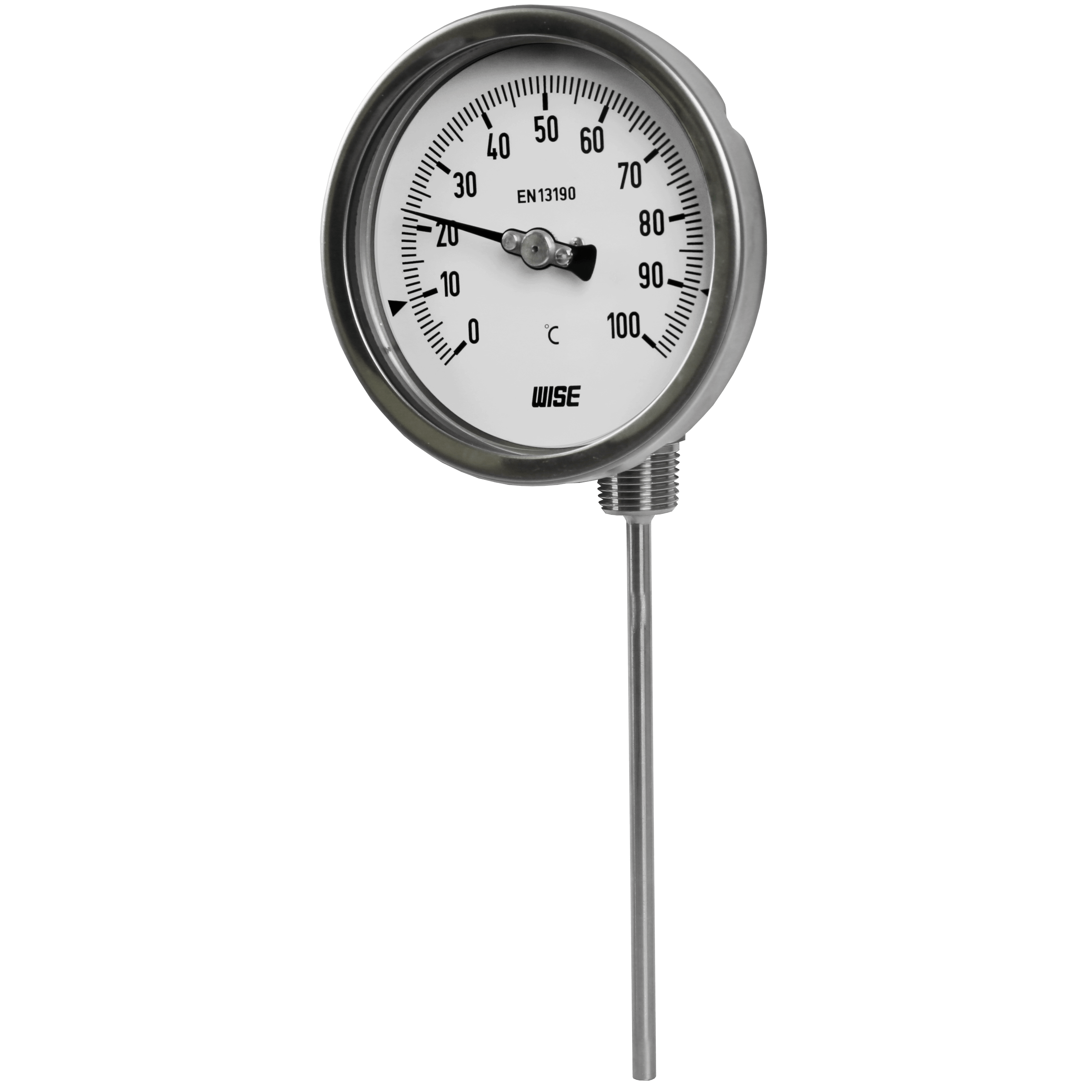

T190_Process industry bimetal thermometer with adjustable stem

T190
