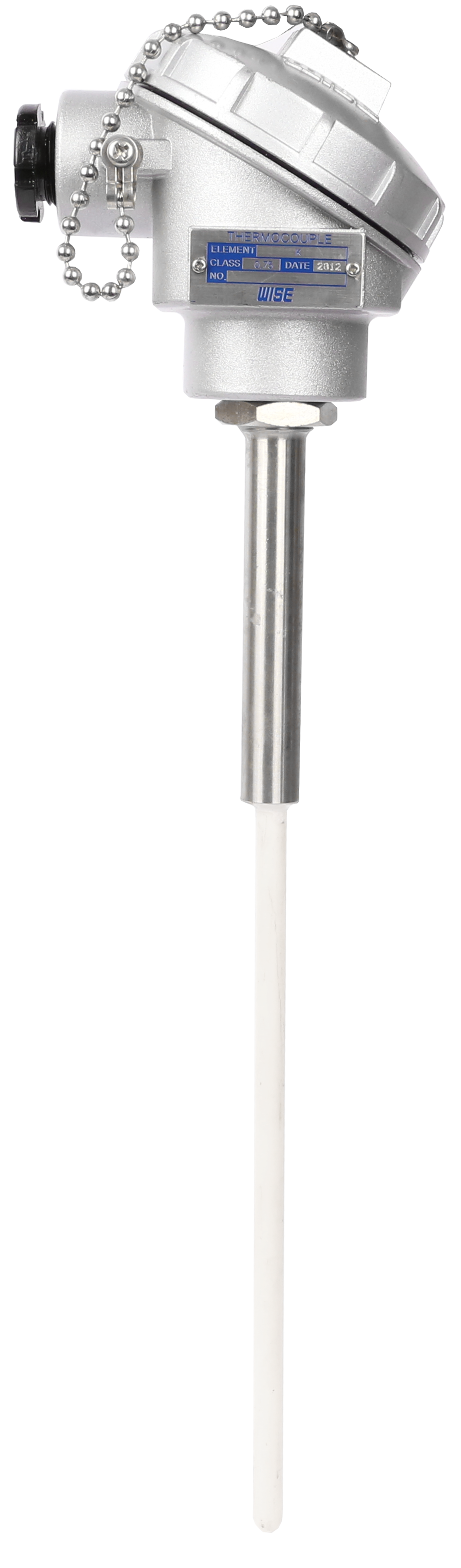

: Non-Metallic Tube Type

Service intended

This thermocouple is the combination of a precious metal such as platinum and rhodium alloy with non - metallic materials such as alumina and ceramic which can withstand a high temperature. It is mainly used in a furnace, kilns, and a production line of glass and ceramic.

■ Furnaces, kilns and ovens
■ Furnaces with oxidizing and neutral atmosphere
■ Glass, fiber and ceramic industries

Standard features

Element	■ Type R (87 % Pt, 13 % Rh / Pt) ■ Type S (90 % Pt, 10 % Rh / Pt) ■ Type B (70 % Pt, 30 % Rh / 94 % Pt, 6 % Rh) ■ Type K
Tolerances on temperature reading	"K" type : Class 2 (0.75 %) Standard (0.75 %) "R", "S" type : Class 2 (0.25 %) Standard (0.5%) "B" type : Class 3 (0.5 %) Standard (0.5 %)
Head material	ALDC (Standard) 304SS (Not available compact type) 316SS (Not available compact type)
Element outer diameter	"K" type : 3.2 mm "R", "S", "B" type : 0.5 mm

Download

Certificates

타이틀

R700 Series_Non-metallic protection tube thermocouple

R700 Series_R701, R702
