면적유량계

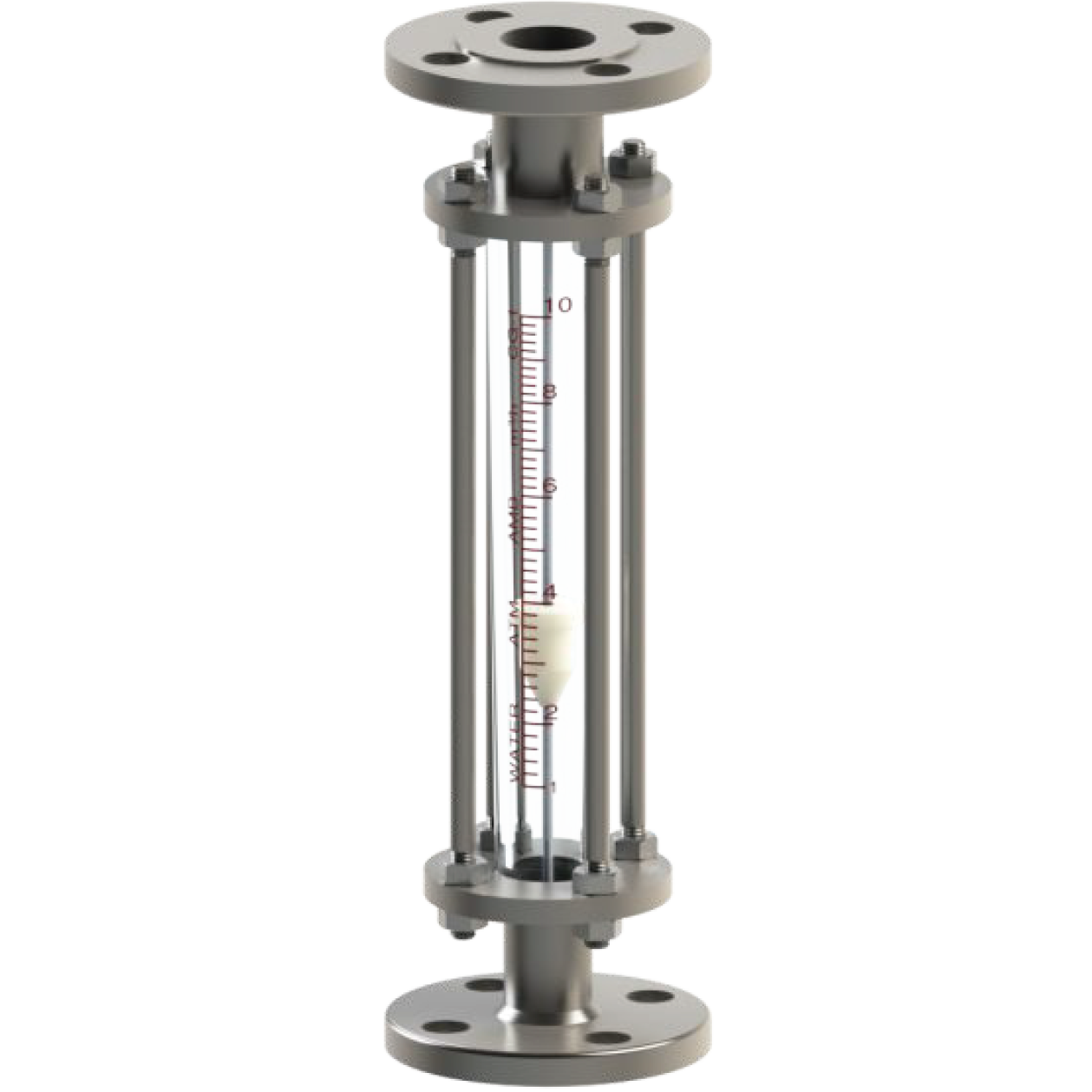

F801_Glass tube flowmeter

F801

Description

They can be used to measure the instantaneous flowrate of liquids or gases in various applications.
They are designed to be installed into vertical lines.

Specification

Measuring Liquid, Gas
Meter size 15A (½") ~ 100A (4")
Material Body : 304SS, 316SS, 316L SS
Float : 304SS, 316SS, 316L SS, PVC, PTFE, ACETAL
Packing : NBR, VITON, EPDM, PTFE
Taper tube : PYREX GLASS
Pressure rating Max.10 kgf/cm²
Temperature rating Max.120 ℃
Connection Flange connection (JIS / ANSI / DIN / Other)
Screw connection (Size: ½"~ 2½")
Accuracy ±3.0 % of full scale

Model & Type

Model Type
F801 Glass tube flowmeter_Con'n : Flange
F802 Glass tube flowmeter_Con'n : Socket & Screw
F803 Glass tube flowmeter_Mat'l : PVC
F804 Glass tube flowmeter_Mat'l : PTFE
F805 Glass tube flowmeter_Mat'l : Teflon Lined
F806 Glass tube flowmeter_Mat'l : PP & PE
F807 Glass tube flowmeter_without Guide rod
F808 Glass tube flowmeter_Direct mount
F809 Glass tube flowmeter_with Protect cover
F810 Glass tube flowmeter_with Control valve
F811 Glass tube flowmeter_Con'n : Sanitary clamp
F812 Glass tube flowmeter_Large size type
