Bourdon Tube

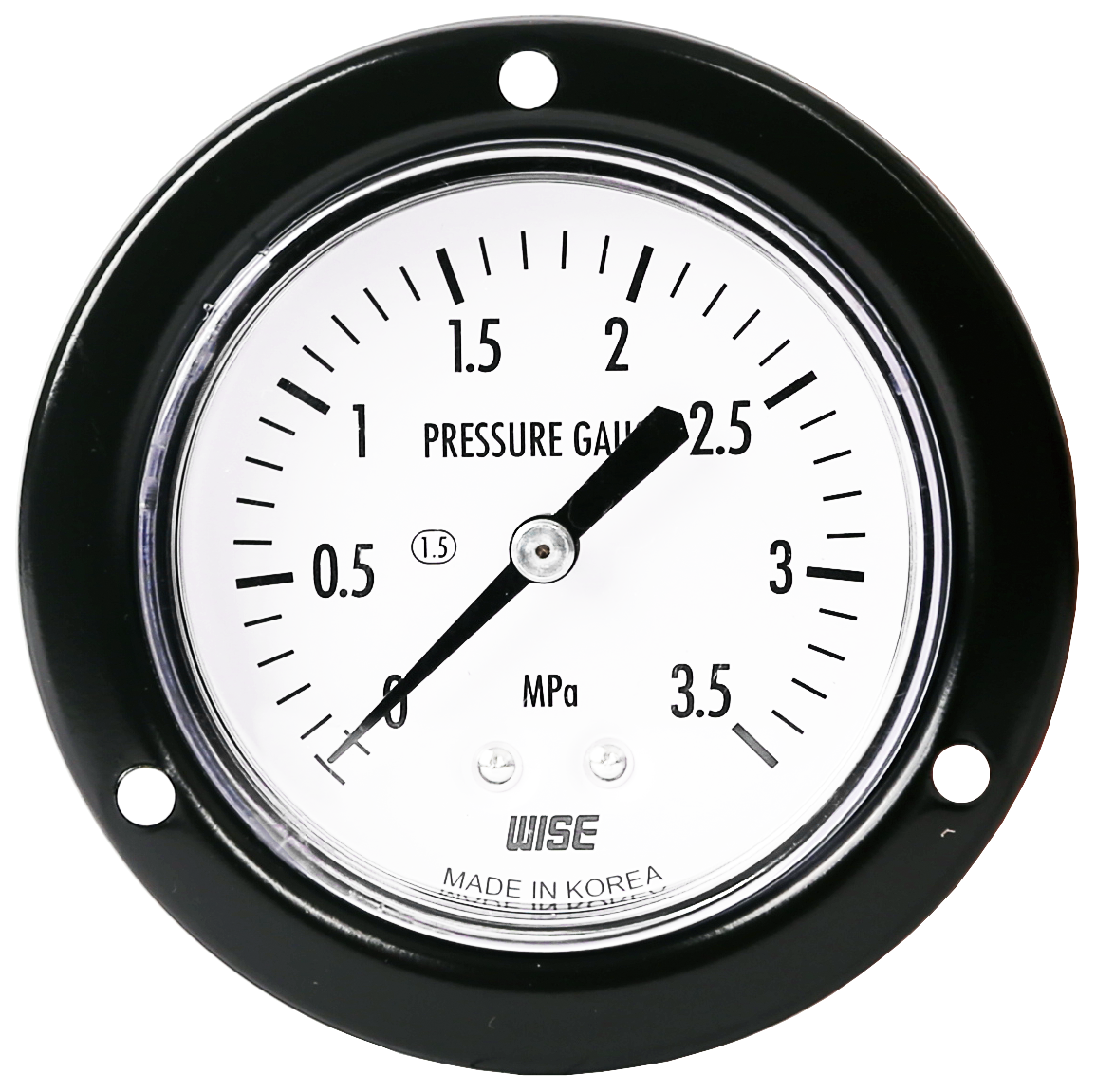

P112 series_Bourdon tube pressure gauge

P112 series

Service intended

P112 series are designed to withstand the shock, the vibration and the pulsation which could be generated from freon gas service.

Nominal diameter 60 and 75 mm
Accuracy ±1.5 % of full scale
Scale range (MPa, kPa, bar) 60mm : -0.1 ~ 0.2, 0.4, 1.0, 1.5, 2.0 MPa
             0 ~ 2.5, 0 ~ 3.5 MPa
75mm : -0.1 ~ 0.2, 0.4, 1.5 MPa
             0 ~ 3.5 MPa
Working pressure Steady : 75 % of full scale
Over range protection : 130 % of full scale
Working temperature Ambient : -20 ~ 60 ℃
Fluid : Max. 60 °C
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10℃ of full scale

Standard features

Pressure connection Brass
Element Brass
C type bourdon tube
Case Black finished steel
Window Polycarbonate (60 mm) Glass (Only 75 mm)
Movement Brass
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Process connection 7/16" UNF
¼" PT, NPT and PF
⅜" PT, NPT and PF (Only 75 mm)

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
